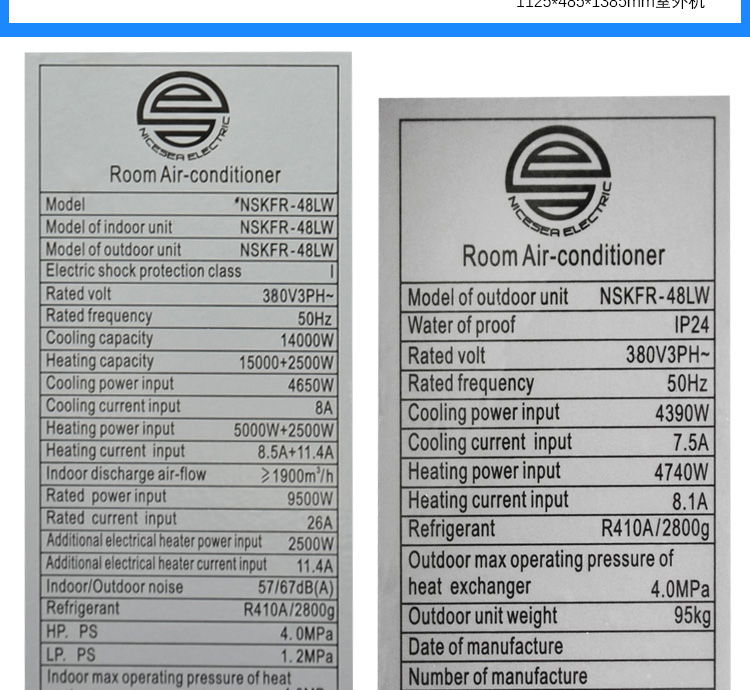

电源规格 Rated volt and frequency |
Ph-V-Hz | 380V/50Hz/3PH | ||
|
制冷 Cooling |
制冷量 (实测/铭牌) Cooling capacity (actual/label) |
W | 14000 | |
|
额定功率 (实测/铭牌) Cooling power input (actual/label) |
W | 4650 | ||
|
额定电流 (实测/铭牌) Heating current input (actual/label) |
A | 8 | ||
|
EER (实测/铭牌) EER (actual/label) |
w/w | 3.01 | ||
|
制热 Heating |
制热量 (实测/铭牌) Heating capacity (actual/label) |
W | 15000+2500 | |
|
额定功率 (实测/铭牌) Heating power input (actual/label) |
W | 5000+2500 | ||
|
额定电流 (实测/铭牌) Heating current input (actual/label) |
A | 8.5+11.4 | ||
|
COP (实测/铭牌) COP (actual/label) |
w/w | 3 | ||
|
辅助电加热消耗功率 (实测/铭牌) Additional electrical heater power input (actual/label) |
W | 2500 | ||
|
辅助电加热输入电流 (实测/铭牌) Additional electrical heater current input(actual/label) |
A | 11.4 | ||
|
除湿量 Moisture Removal |
Kg/h |
|
||
|
最大输入功率 Max. input consumption |
W | 9500 | ||
|
最大电流 Max. current |
A | 26 | ||
|
压缩机 Compressor |
型号 Model |
|
ATE590SC3Q9JK | |
|
类型(旋转式、活塞式、涡旋式) Type (Rotary、Piston 、scroll） |
|
Highly | ||
|
品牌 Brand |
|
Rotary | ||
|
能力 Capacity |
W | 14850 | ||
|
输入功率 Power input |
W | 4950 | ||
|
启动电流-堵转电流 LRA |
A | 65 | ||
|
运转电流 RLA |
A | 8.7 | ||
| 保护器型号（内置、外置） |
|
internal | ||
|
电容 capacity |
uF-V | / | ||
| 制冷油名称、油量 | ml | 68HES-H/1600ml | ||
|
室内机 Indoor |
风扇电机 Fan motor |
型号 Model |
|
YDK－100-10B 1 320206022R |
|
输入功率 Power input |
W | 277（B级） | ||
|
电容 capacity |
uF | 6μF/500V | ||
|
转速(高/中/低) Indoor Fan Speed RPM (High/Med/Low) |
r/min |
High 480±20rpm Med 400±25rpm Low 300±30rpm |
||
|
室内风轮 Indoor fan |
直径×长度 dia.*length |
mm | φ380×180 | |
|
蒸发器 Evaporator |
图号 |
|
KFR-120L/B+5B.7.2.1 | |
|
翅片类型 Fin type |
mm | open window fin | ||
|
管径/铜管类型(内螺纹管、光管) Tube outside dia.and typ |
mm | φ9.52/Internal thread tube | ||
|
蒸发器尺寸 （迎风面长X宽） Coil length x height x width |
m3/h | 480*900*43 | ||
|
循环风量 实测/铭牌(High/Med/Low) Indoor Air Circulation (High/Med/Low) (actual/label) |
dB(A) | 1900 | ||
|
噪音 实测/铭牌(High/Med/Low) Indoor Noise Level dB (High/Low) (actual/label) |
mm | 57 | ||
|
外形尺寸（长X宽XHigh） Dimension (L*W*H) |
mm | 600×313×1868 | ||
|
包装尺寸（长X宽XHigh） Packing (L*W*H) |
Kg | 2085×750×520 | ||
|
净重/毛重(毛净重由于工艺、配置，客户要求不同，参数不同，本数据仅供参考，以产品铭牌、纸箱上的数据为准) Net/Gross weight |
|
59/75 | ||
| 纸箱图号 |
|
ZX-L204-F | ||
|
室外机 Outdoor |
风扇电机 Fan motor |
型号 Model |
W | YDK-60-6B 9 |
|
输入功率 Power input |
uF | 135 | ||
|
电容 capacity |
r/min | 4 | ||
|
转速(High/Med/Low) Outdoor Fan Speed RPM (High/Med/Low) |
mm | 900±20 | ||
|
室外风轮 Outdoor fan |
直径X高度 dia.*High |
|
φ496×143 | |
|
冷凝器 Condenser |
图号 |
|
KFR-120W/J+N3.1.20 KFR-120W/J+N3.1.21 |
|
|
翅片类型 Fin type |
mm | open window fin(arc-shaped) | ||
|
管径/铜管类型(内螺纹管、光管) Tube outside dia.and typ |
dB(A) | φ7×0.25+0.18/Internal thread tube | ||
|
冷凝器尺寸 （长X宽XHigh） Coil length x height x width |
mm | 930*1197*36.38 | ||
|
噪音实测/铭牌 Outdoor Noise Level dB (High/Low) (actual/label) |
mm | 67 | ||
|
外形尺寸（长X宽XHigh） Dimension (L*W*H) |
Kg | 970×345×1237 | ||
|
包装尺寸（长X宽XHigh） Packing (L*W*H) |
|
1125×485×1385 | ||
|
净重/毛重(毛净重由于工艺、配置，客户要求不同，参数不同，本数据仅供参考，以产品铭牌、纸箱上的数据为准) Net/Gross weight |
g | 95/108 | ||
| 纸箱图号 | MPa | ZX-LW219 | ||
|
制冷剂类型/重量 Refrigerant type/weight |
mm | R410A/2800 | ||
|
设计压力（High压/Low压） Design pressure (Hi/Low) |
m | 4.0/1.2 | ||
|
连接管/电缆线 Refrigerant piping /Connection wiring |
液管/气管管径/管长 Liquid side/ Gas side/Length |
|
φ9.52+φ19.05×5000 | |
|
最大管长/最大高差 Max. refrigerant pipe length /Max. difference in level |
|
15/5 | ||
|
电源线(线数×线径×长度) Power cord(line numberX line diameter X length) |
|
|
||
|
室内外连接电缆（线数×线径×长度） Indoor&Outdoor connecting cable(line numberX line diameter X length) |
|
|
||
